Single-ply Roofing System

Commercial Roofing Installation – Vertical & Flat Roof Areas

700m² installation of IKO Armourplan P single-ply membrane in Folkestone, Kent

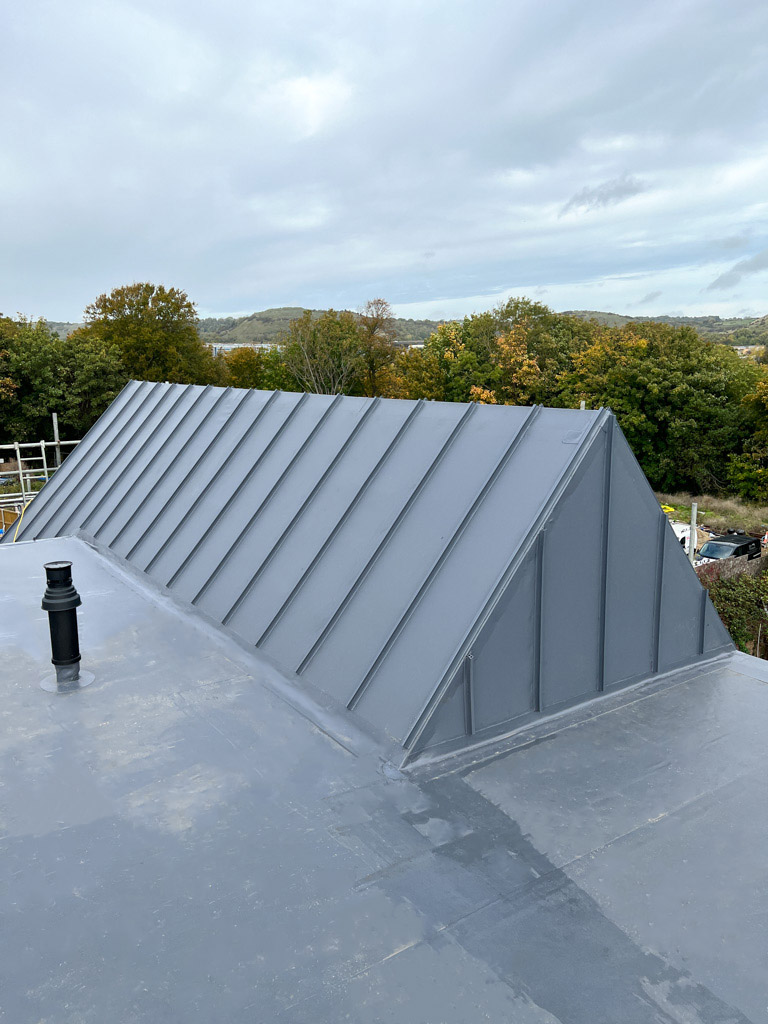

Here you see a large-scale commercial roofing project spanning over 700 square metres, covering both vertical and flat roof areas. The client required a robust, long-lasting solution that combined durability with a refined, contemporary finish.

Vertical Roof Areas

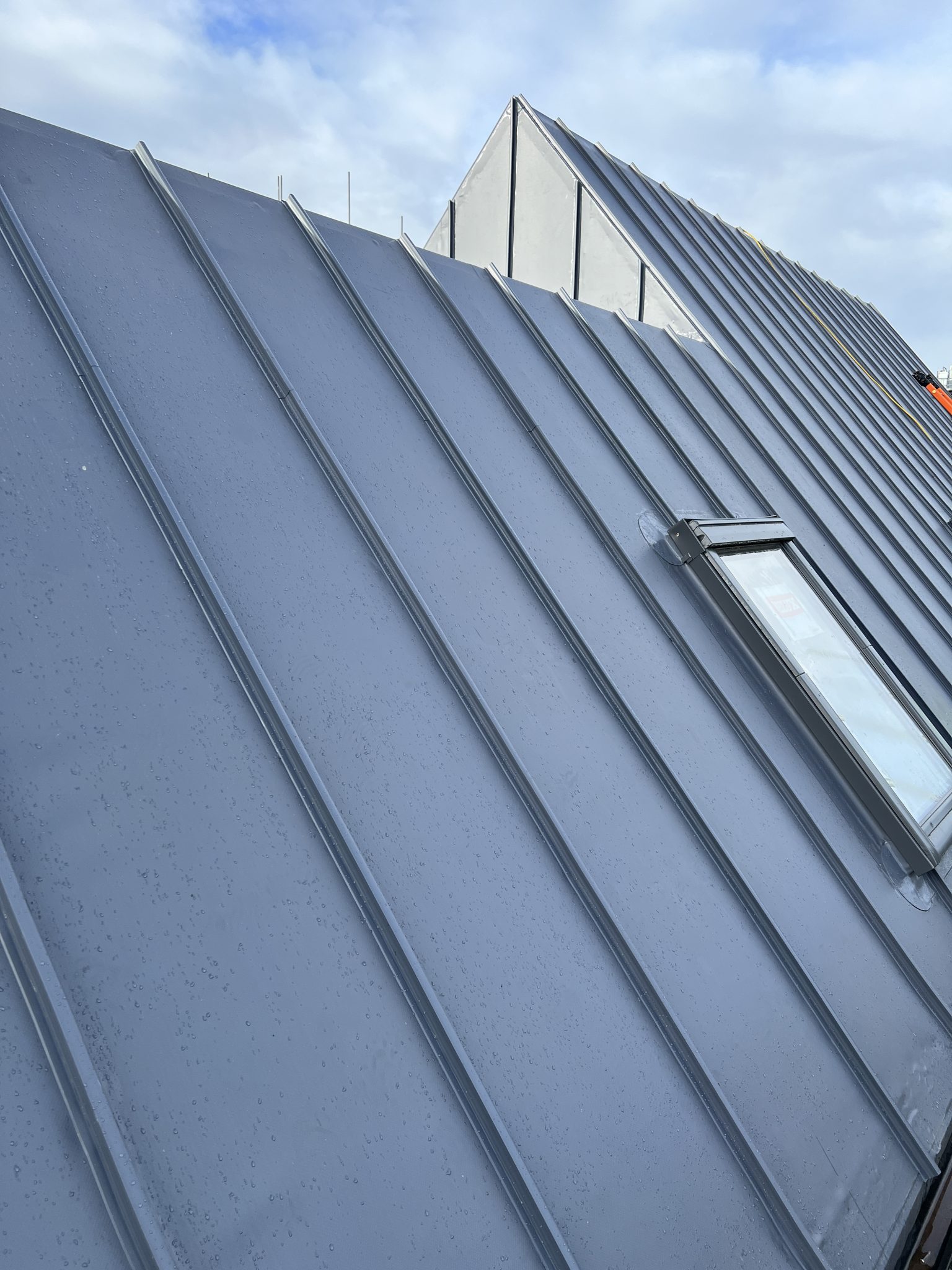

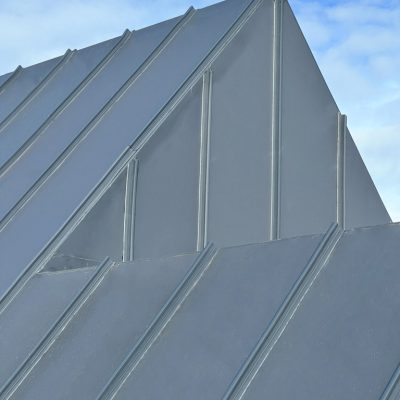

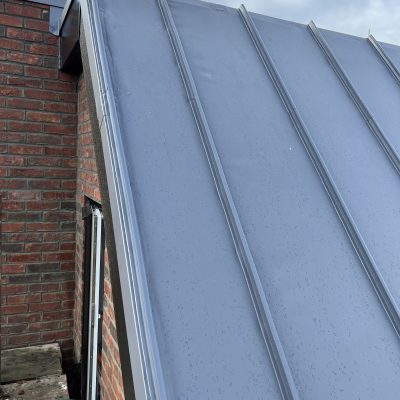

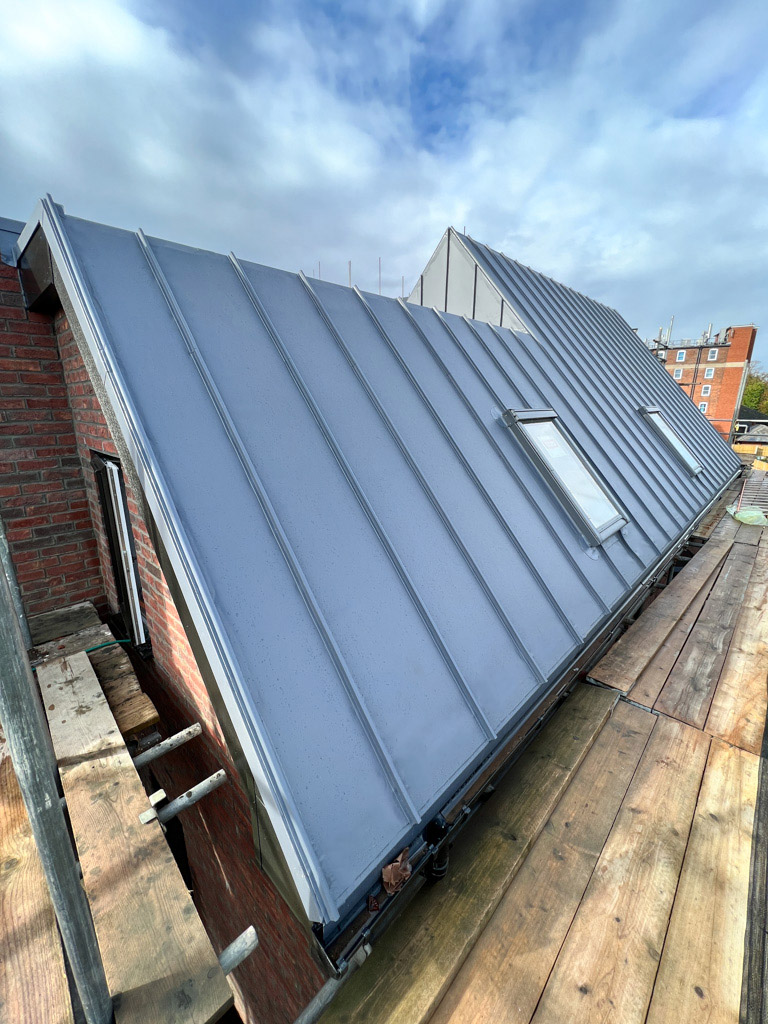

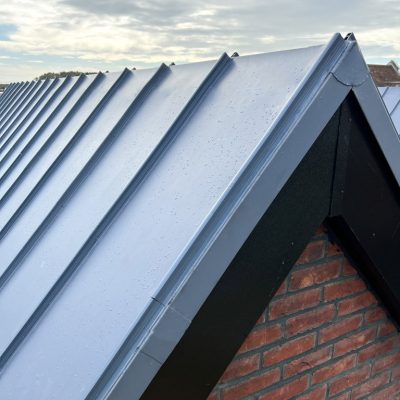

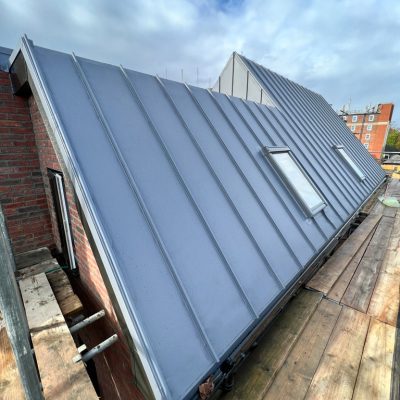

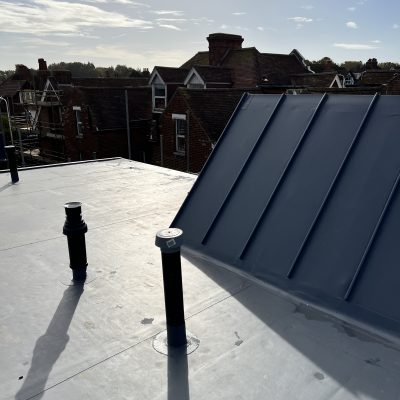

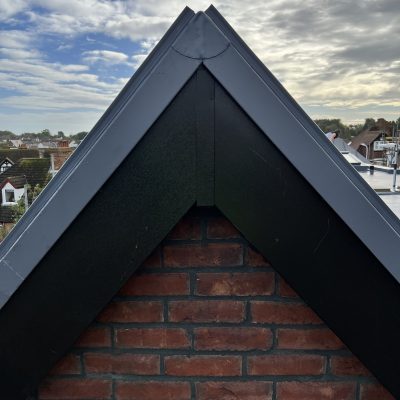

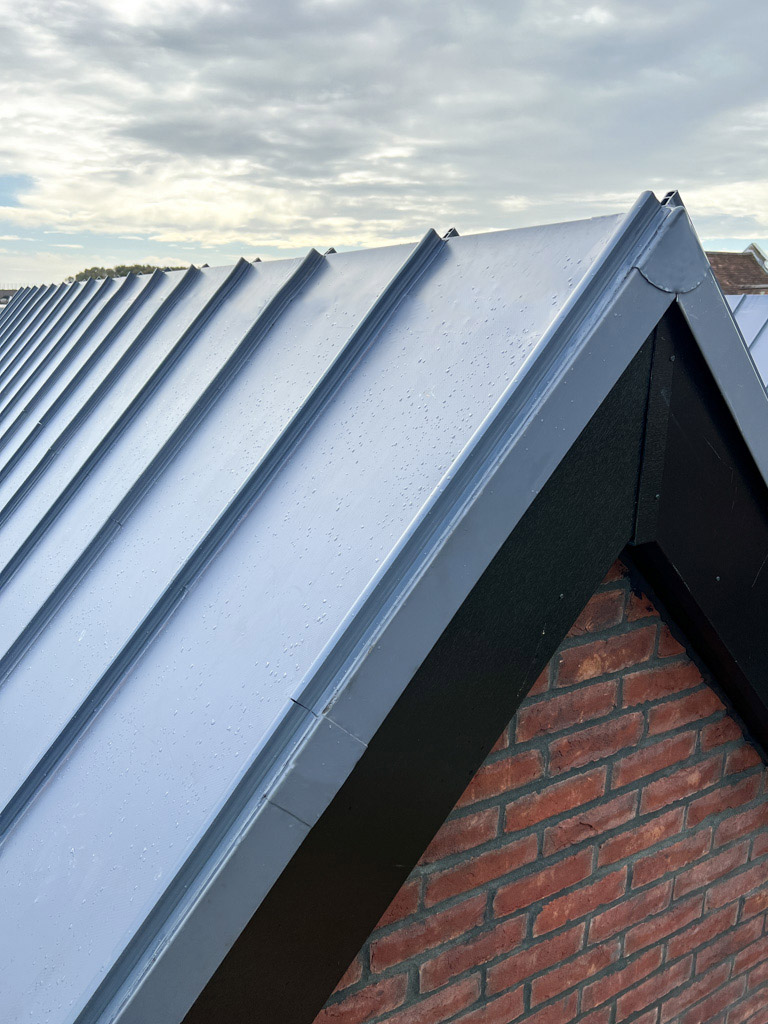

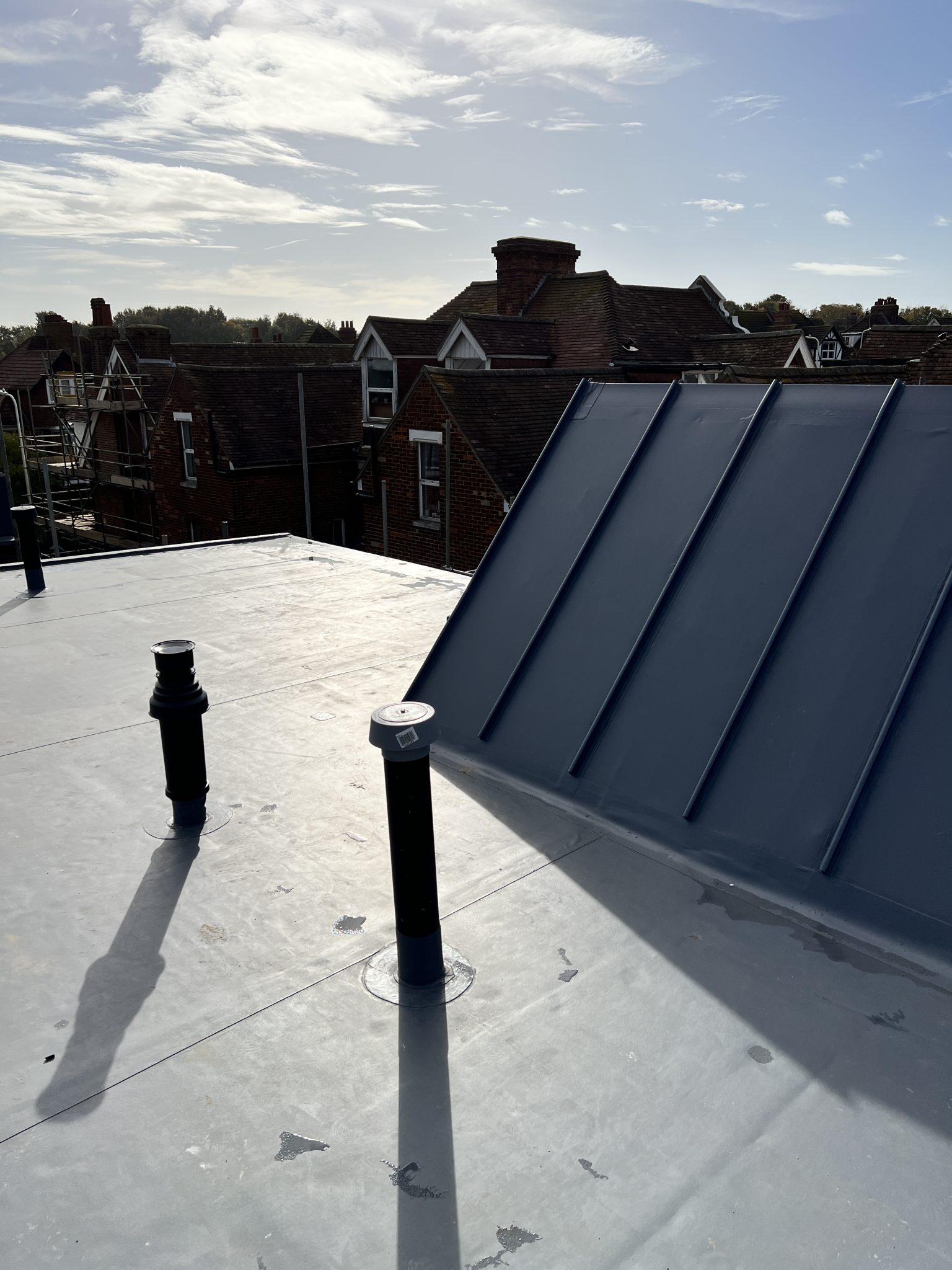

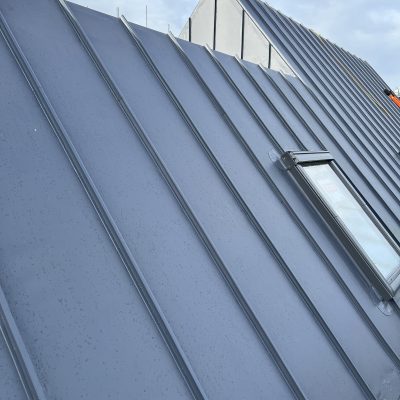

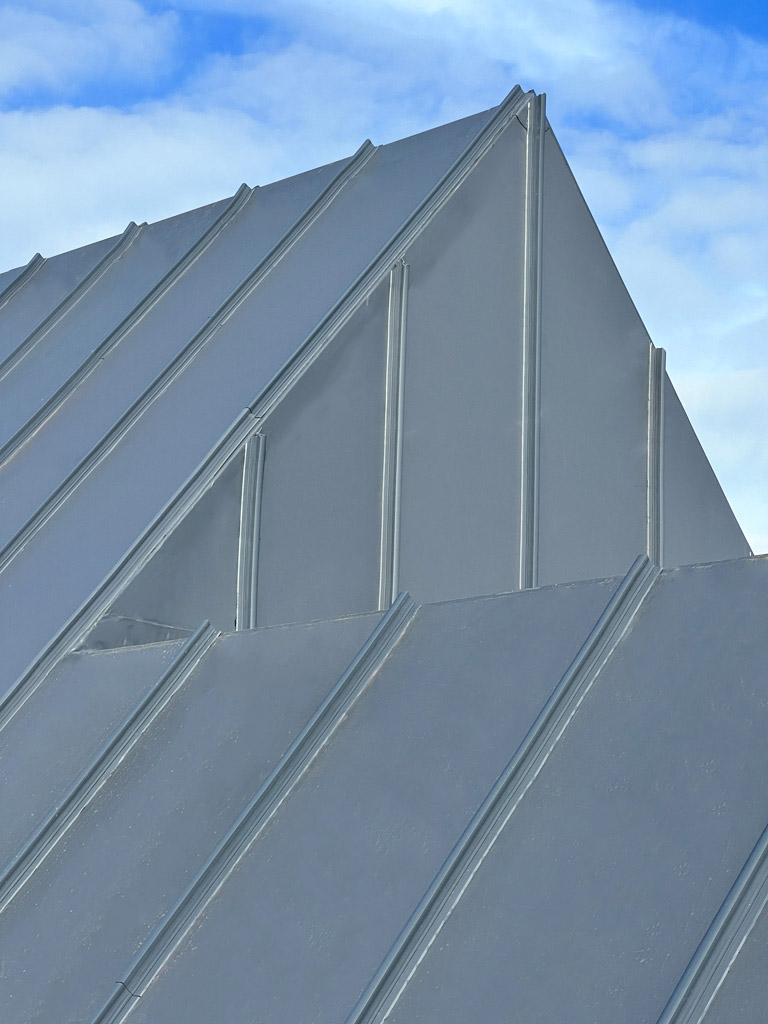

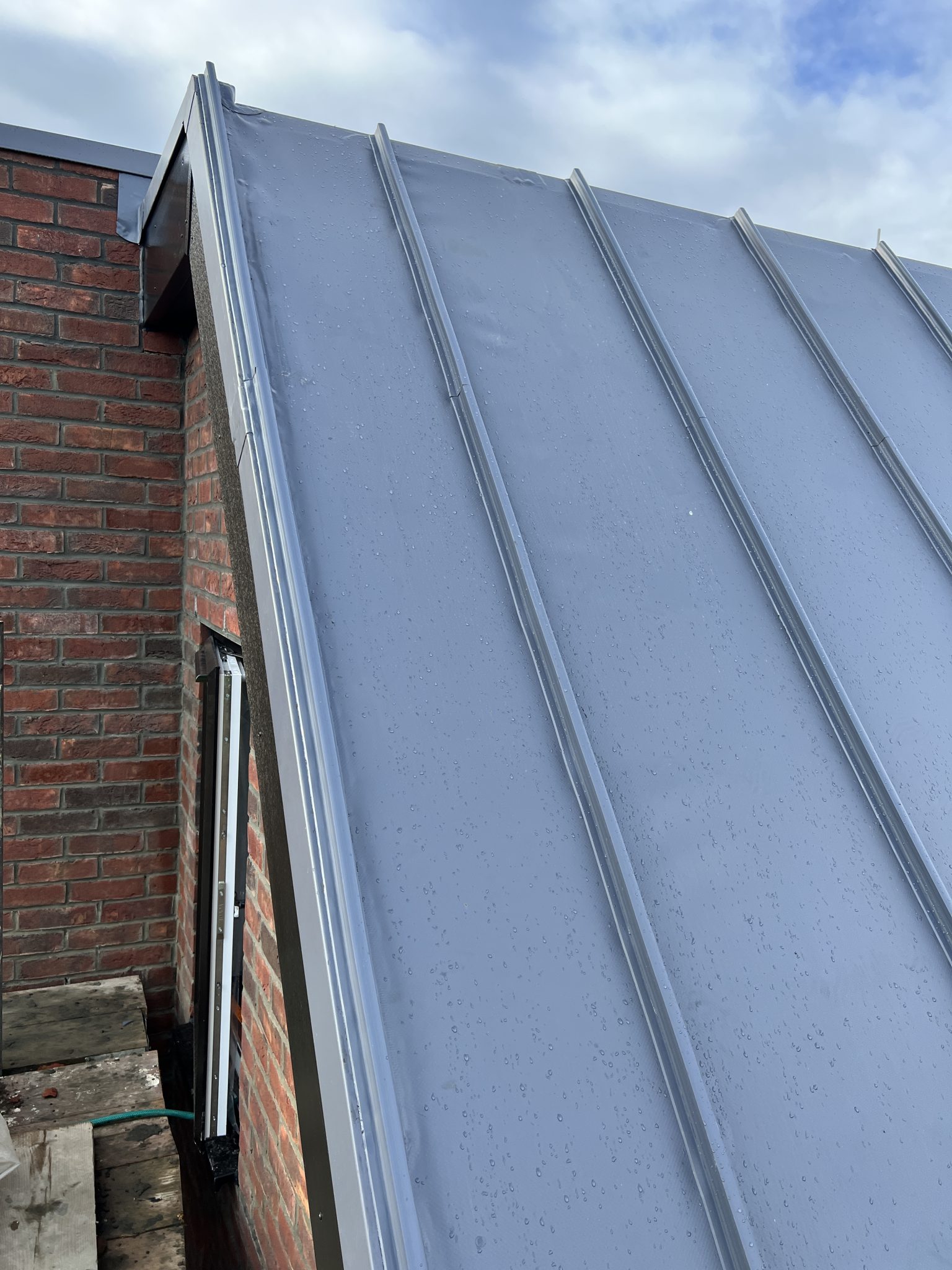

For the vertical installation, we used IKO Armourplan P, a high-performance mechanically fixed PVC membrane, featuring standing seams at 400mm centres to deliver a clean, architectural look.

Beneath the surface, the system includes a vapour control layer, 120mm of rigid insulation for enhanced thermal performance, and a waterproofing layer with mechanically fixed laps for long-term reliability.

Flat Roof Areas

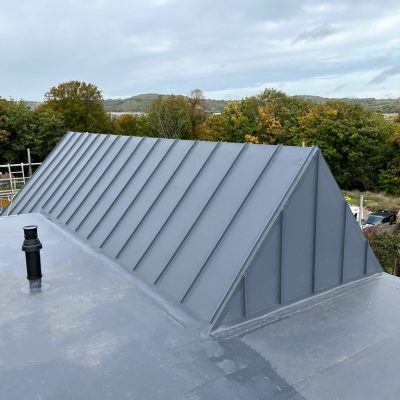

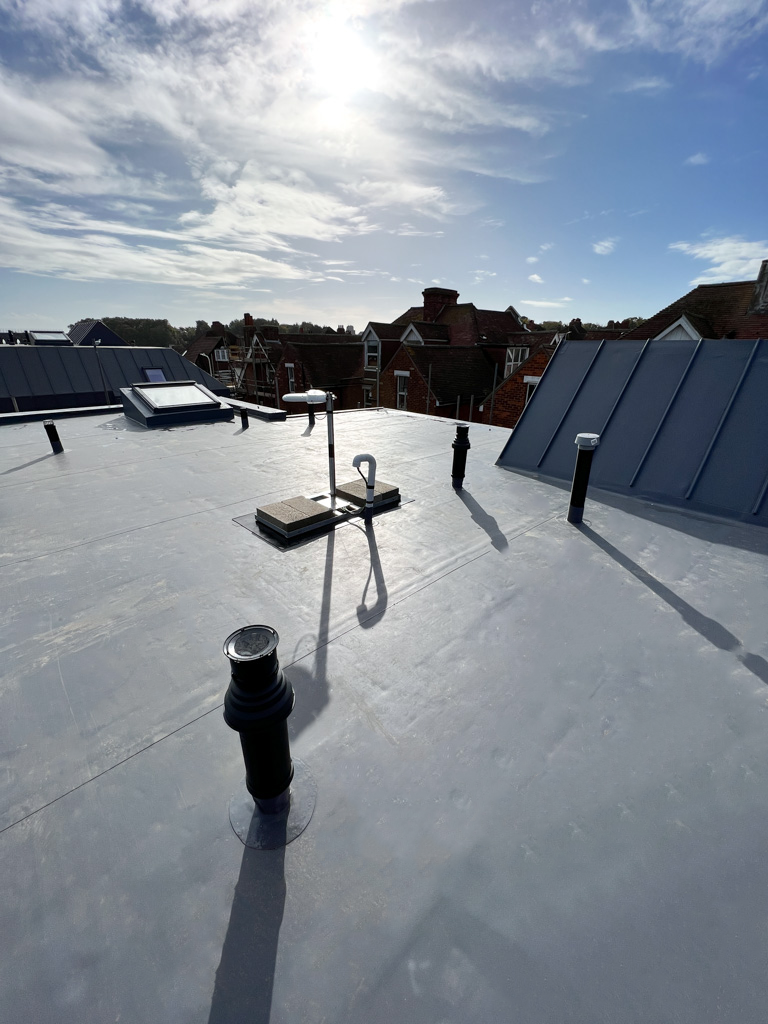

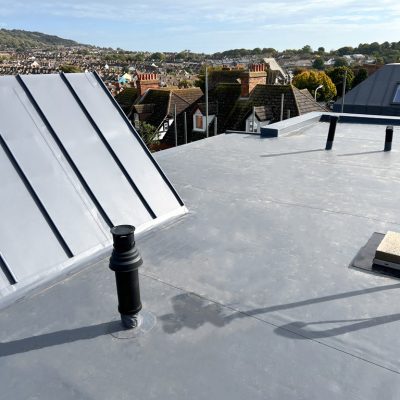

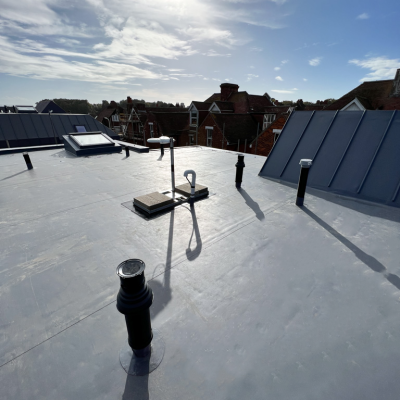

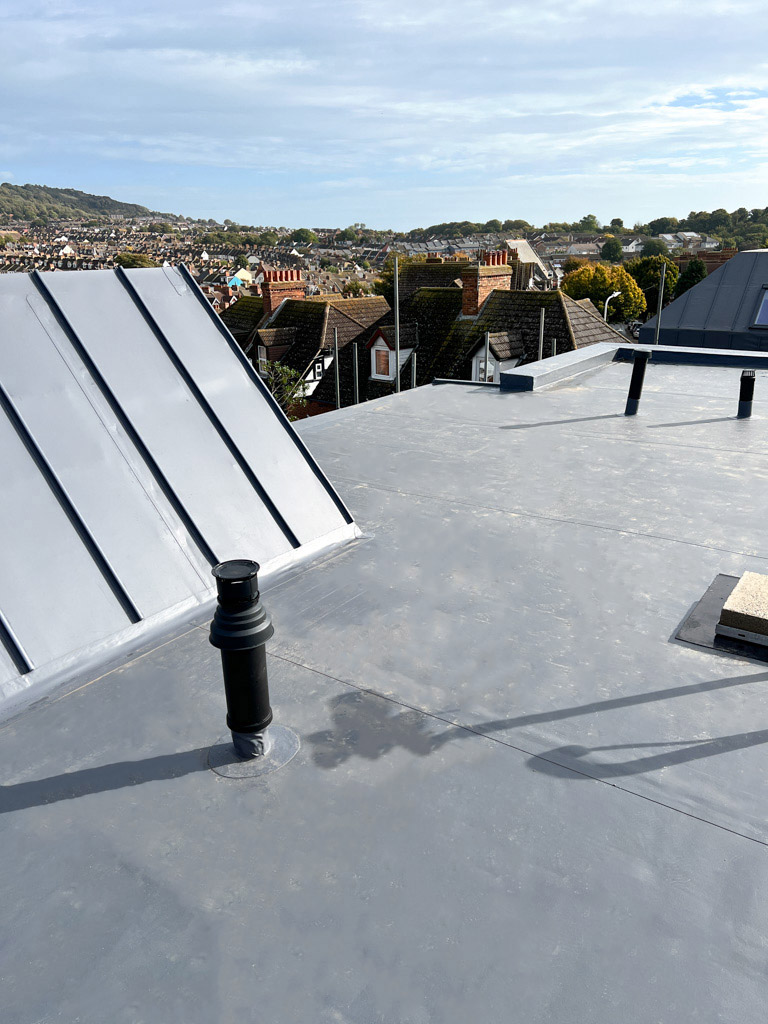

The flat roof sections were fitted with fully bonded IKO Armourplan PSG fleece-backed PVC membrane, chosen for its durability, strength, and dimensional stability.

Below the membrane, we installed a vapour control layer and a 190mm rigid insulation system, comprising two layers (100mm and 90mm), all mechanically fixed to ensure structural stability and consistent performance.

This commercial roofing project demonstrates our focus on quality materials, precision detailing, and energy-efficient systems designed to stand the test of time.
